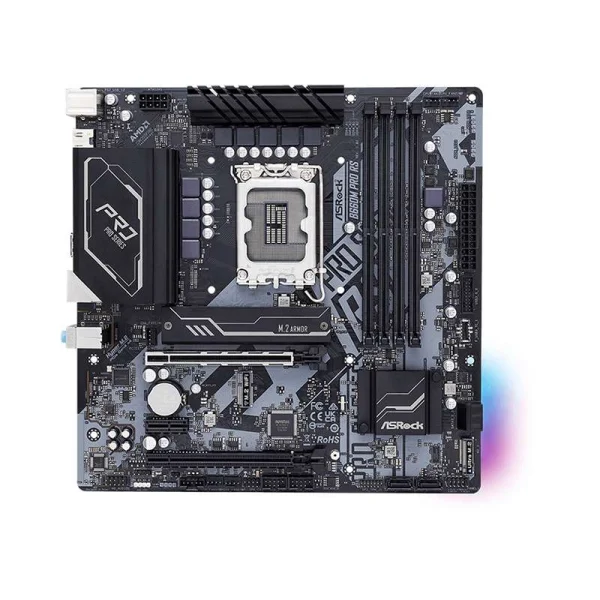

Mainboard ASRock B660M PRO RS (Intel B660, Socket 1700, DDR4)

Sản phẩm

Bo mạch chủ

Name

Asrock

Người mẫu

B660M ProRS DDR4

CPU support

thông minh

Chipset

B660

RAM support

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel^® Extreme Memory Profile (XMP) 2.0

Khe cắm mở rộng

- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
- 1 x PCIe Gen3x1 Slot
- Supports AMD CrossFire™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT)

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s Connectors** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode**

Cổng kết nối (Internal)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
- 3 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
- 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

Cổng kết nối (Back Panel)

- 3 x Điểm gắn ăng-ten
- 1 x Cổng Chuột/Bàn phím PS/2
- 1 x Cổng HDMI
- 1 x DisplayPort 1.4
- 4 x Cổng USB 3.2 Gen1 (trung tâm ASMedia ASM1074) (Hỗ trợ Bảo vệ ESD)
- 2 x Cổng USB 2.0 ( Hỗ trợ Bảo vệ ESD)
- 1 x Cổng LAN RJ-45 có đèn LED (Đèn LED ACT/LINK và đèn LED TỐC ĐỘ)
- Giắc âm thanh HD: Đường vào / Loa trước / Micrô

Mạng LAN / Không dây

- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel ^®  I219V
- Hỗ trợ Wake-On-LAN
- Hỗ trợ Lightning/ESD Protection
- Hỗ trợ Ethernet 802.3az tiết kiệm năng lượng
- Hỗ trợ UEFI PXE

Size size

- Hệ số dạng Micro ATX: 9,6 inch x 9,6 inch, 24,4 cm x 24,4 cm
- Thiết kế tụ điện rắn
